Integrating Ping Identity SSO with Axis LMS

If you use Ping Identity as your SAML identity provider (IdP), you can use the information in this document to set up SAML authentication for your Axis LMS.

These steps assume that you have permissions for modifying your organization’s Ping Identity portal.
    Note: These steps reflect a third-party application and are subject to change without our knowledge. However, even if the steps described here do not fully match the screens you see in your IdP account, using these steps along with the IdP’s documentation should still enable you to configure the integration.
Step One: Begin Adding The Integration In Axis LMS

  1. While signed in to Axis LMS as an administrator, go to System > Integration > Single Sign-On (SSO) > SAML Sign-In
  2. Click the + Add An Integration button.
  3. Select Ping Identity from the list of SAML Identity provider.
  4. Keep this screen/tab open for now as we will refer to it later.

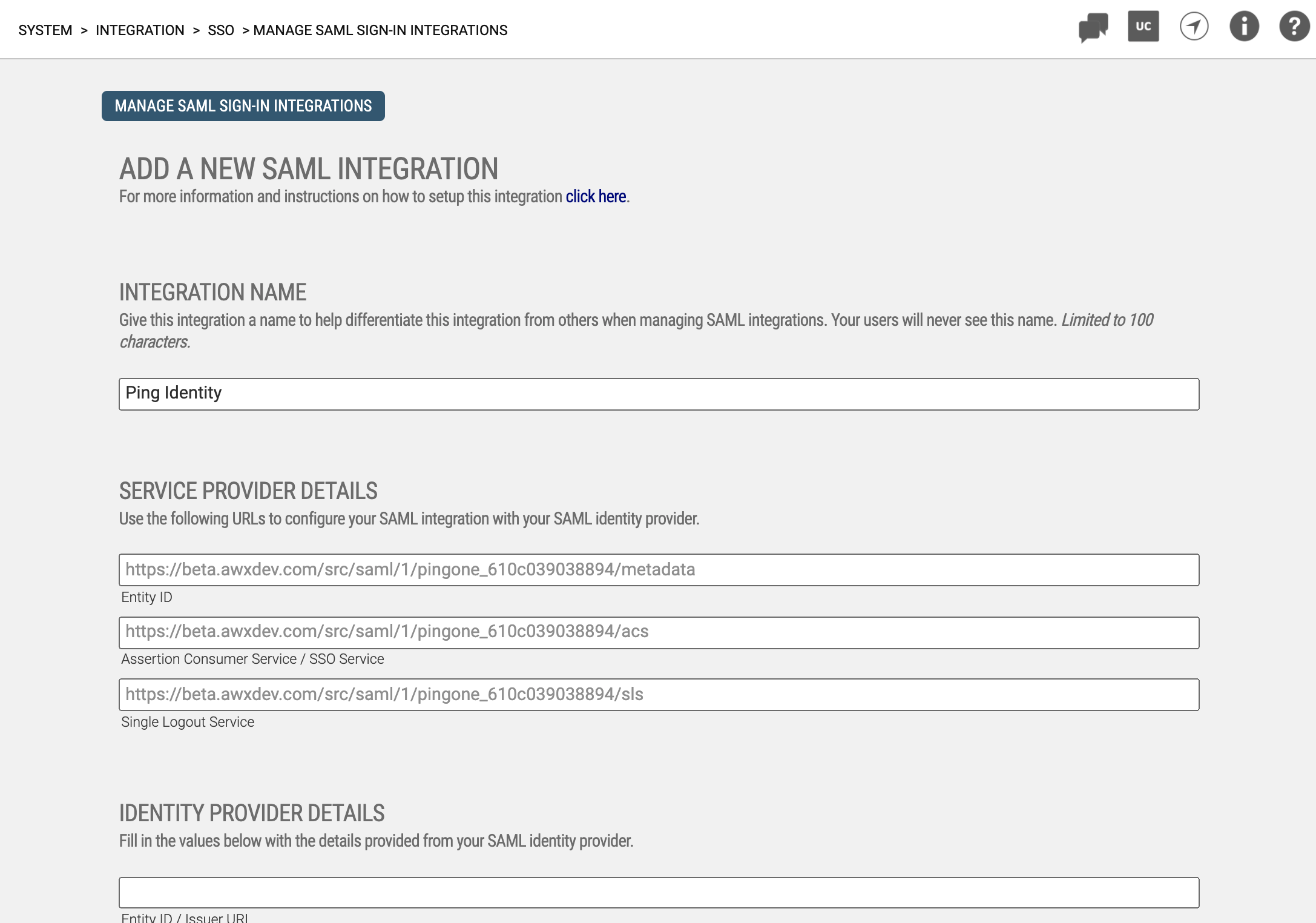

    Figure 1: Add A New Integration Screen in Axis LMS

Step Two: Adding Axis LMS To Your Ping Identity Applications
  1. In a new tab/window, access Ping Identity.
  2. In Ping Identity, select the environment you would like to add the Axis LMS application to.
  3. Go to Connections > Add Application.
  4. Click on the Web App application type, then click the Configure button next to the SAML option.
  5. Edit the Application Name, entering Axis LMS
  6. Accept other default values for now and click Next.
  7. Keep this screen/tab open for now as we will refer to it later.

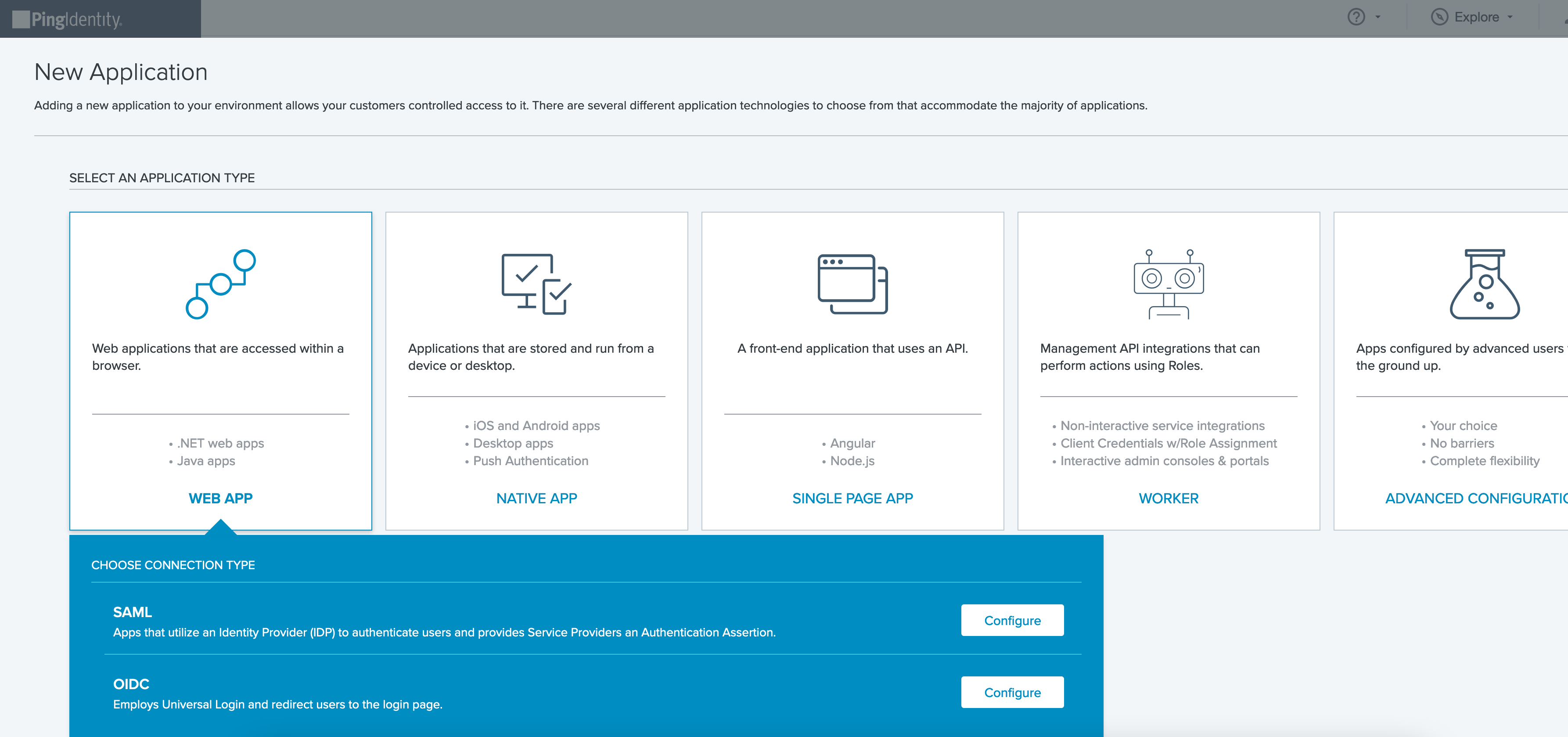

    Figure 2: Ping Identity > Add SAML Application

Step Three: Add Service Provider Details To Ping Identity

In this step, we’ll define the service provider values that Ping Identity will need to identify your app.

  1. On the Add A New Integration screen in Axis LMS, go to the Service Provider Details section.
  2. In Ping Identity, under Provide App Metadata, select the option to Manually Enter.
  3. Copy values from Axis LMS into the Ping Identity fields as shown below.
  4. Set Subject NameID Format to urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
  5. Set Assertion Validity Duration to 180.
  6. Leave all other values as is and click Save & Continue.

    Copy Axis LMS Field Value to Ping Identity Configuration Tab Field
    Entity ID to Entity ID / Issuer URL
    Assertion Consumer Service / SSO Service to ACS URLs
    Single Logout Service to SLO Endpoint

Step Four: Defining User Attributes

In this step, we’ll define the information about the user (id, email address, first name, last name) that need to be passed to Axis LMS.
  1. In Ping Identity, click the Add Attribute link and select PingOne Attribute.
  2. In the Pingone User Attribute dropdown, select User ID.
  3. Under Application Attribute enter "uuid" (without quotations).
  4. Repeat this sequence three more times, using the fields/values below

    Pingone User Attribute to Application Attribute
    Email Address to emailAddress
    Given Name to firstName
    Family Name to lastName

Note: Even though Ping Identity may provide additional user data that can be passed as parameters, only the parameters listed above are compatible with Axis LMS; all other values will be ignored.

Step Five: Add Identity Provider Details To Axis LMS

In this step, you'll provide Axis LMS with the SAML Identity provider values it needs to communicate with Ping Identity.

  1. In the Ping Identity Application listing, click on the Configuration tab for the application you just created.
  2. Copy values from the Configuration tab and paste them into the Identity Provider Details section of Axis LMS, as shown below

    Copy Configuration Tab Field Value to Axis LMS Field Value
    Issuer ID to Entity ID / Issuer URL
    Single Sign on Service to SAML 2.0 Endpoint / SSO URL
    Download Metadata > Open In Text Editor > X509Certificate to X.509 Certificate

After copying values from the SSO tab into the Identity Provider Details section of Axis LMS, it should look something like this:

    Figure 3: Axis LMS Identity Provider Details

Step Six: Finishing Up & Testing

Enable the application in Ping Identity by the toggle button to the right of the application title. At this point you've completed all the necessary steps to configure the Axis LMS application in Ping Identity.

In Axis LMS, on the Add A New Integration screen, finish configuring the User Login settings and then click Save to save the integration in Axis LMS.

To test your new integration, you'll need to give users access to your new application in Ping Identity before using the newly generated Axis LMS login link for this integration. For more information on granting users access to your application via Ping Identity, please refer to the IdP's documentation.
The features discussed in this article may or may not be available on your LMS system.
